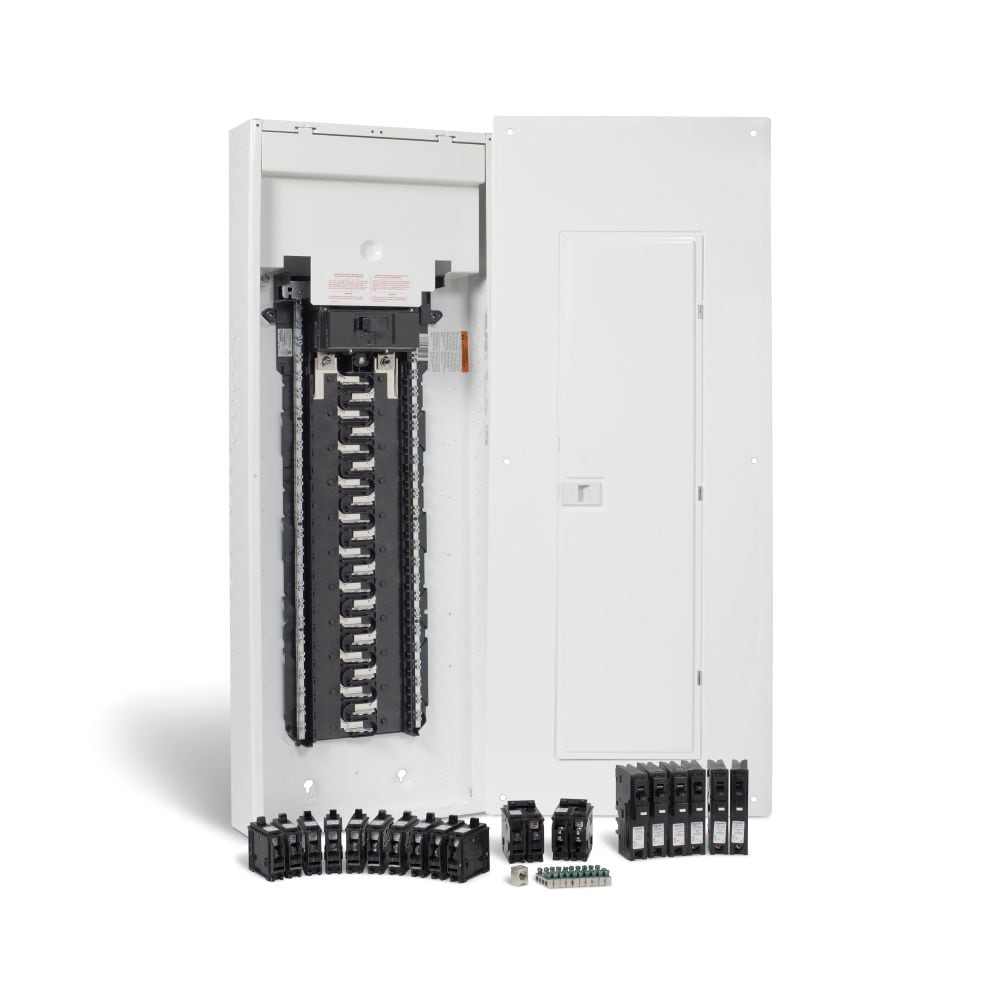

200 Amp, 42 Spaces/84 Circuits Max. Arc Fault Plug-on Neutral Panel Package with Breakers
10 years on enclosure, branch circuit breakers for the lifetime of the HomeLine load center in which it is installed

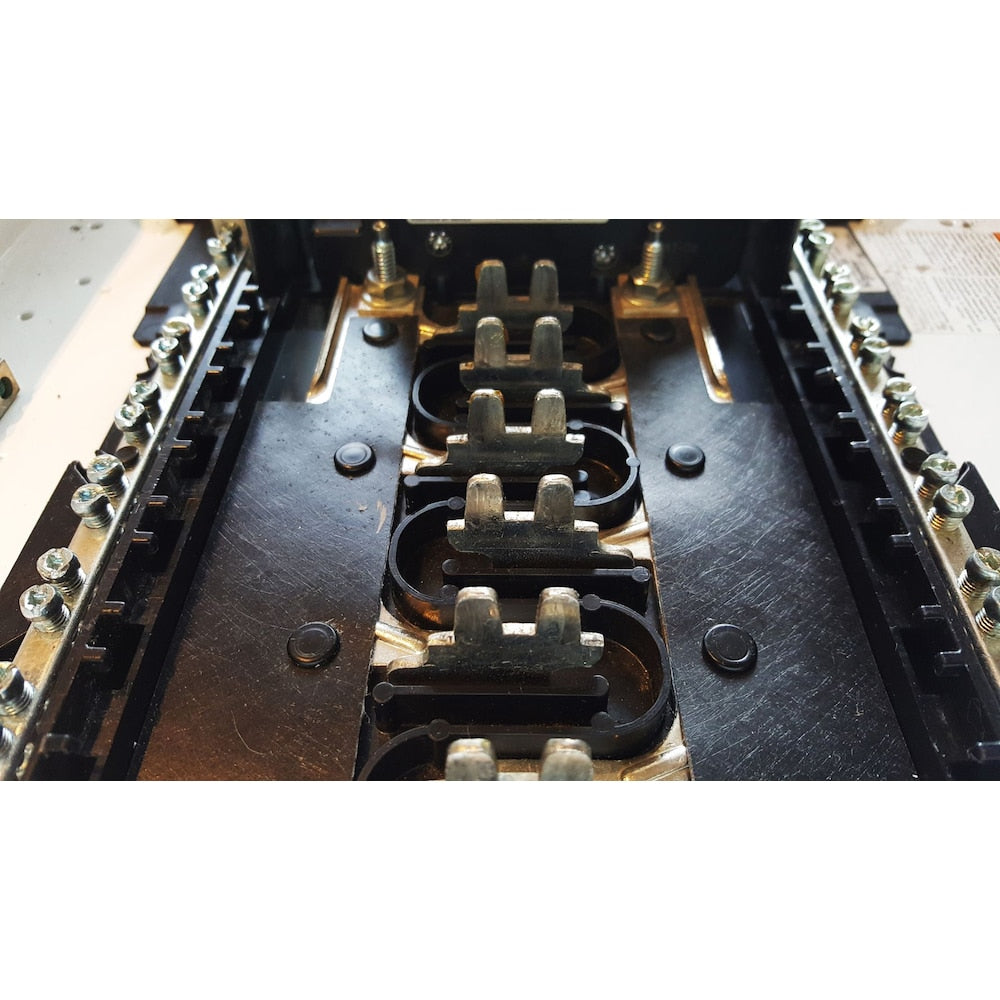

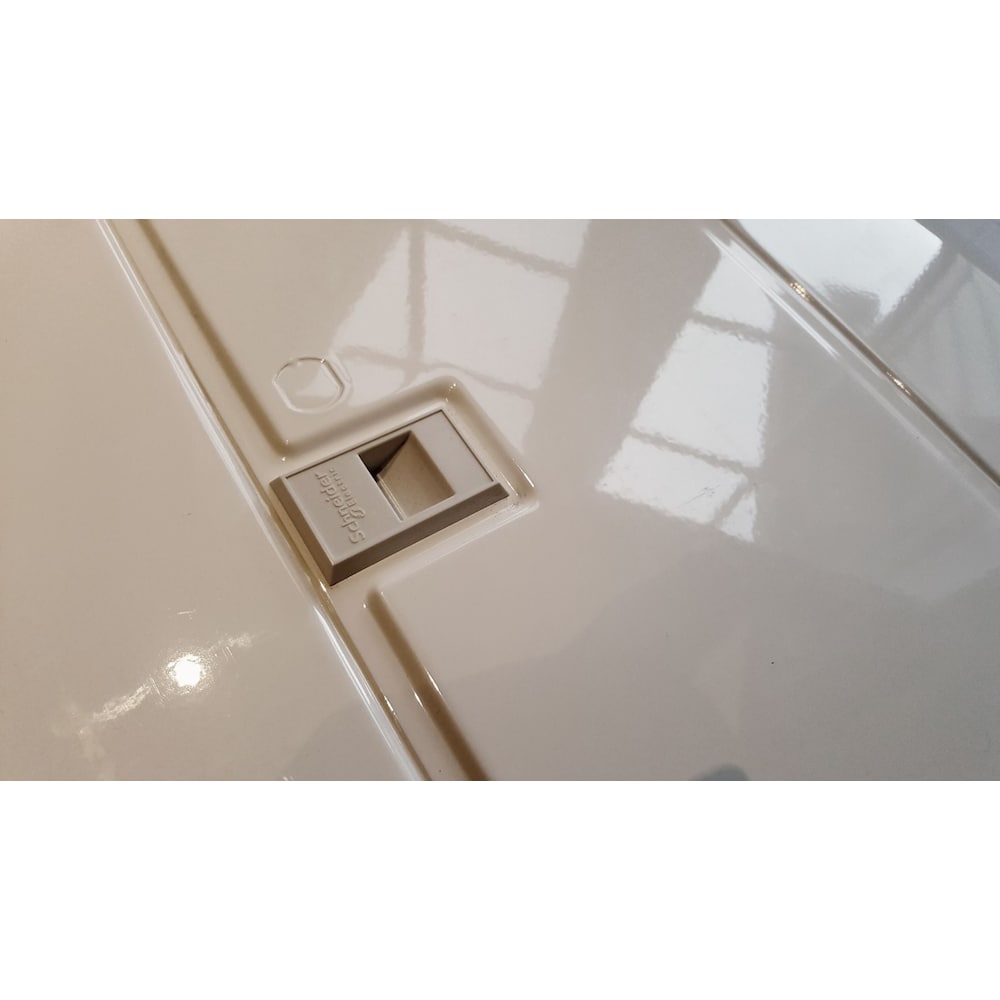

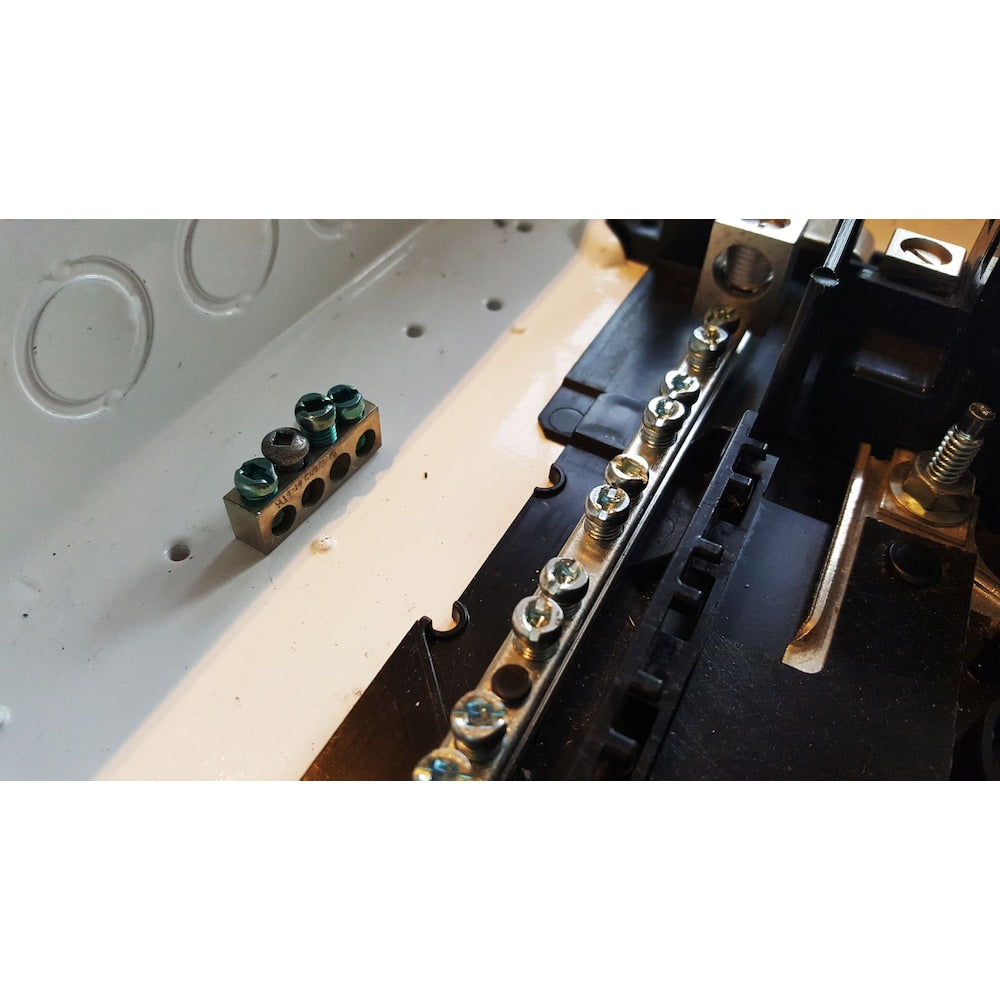

The HomeLine plug-on neutral panel package combines a service entrance loadcentre with a selection of breakers including combination arc fault breakers for easy installation. The plug-on (pigtail less) combination arc fault circuit breakers connect directly to the neutral bar of the loadcentre, eliminating the need to attach a separate neutral wire to the neutral bar and resulting in faster installations. HomeLine loadcentres feature a fully distributed neutral bar that is versatile enough to accept both a pigtail and pigtail less arc fault breakers. This panel offers speed and safety features such as, straight-in wiring for the bolt-on main breaker, painted appliance white finish for no sharp edges, drywall markers for accurate installation and a shielded bus design. CSA approved to only accept Canadian HomeLine circuit breakers. Breakers Included: 8 - 1Pole 15A, 2 - 1Pole 20A, 1 - 2Pole 30A, 1 - 2Pole 40A, 6 - 1Pole Combination Arc Fault Expandable loadcentre capacity with the use of space saver (tandem) breakers. Distributed neutral with backed out screws reduces clutter and simplifies wiring Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire Includes latch door on the cover CSA approved for vertical, horizontal or inverted mounting and suitable for Al/Cu conductors
