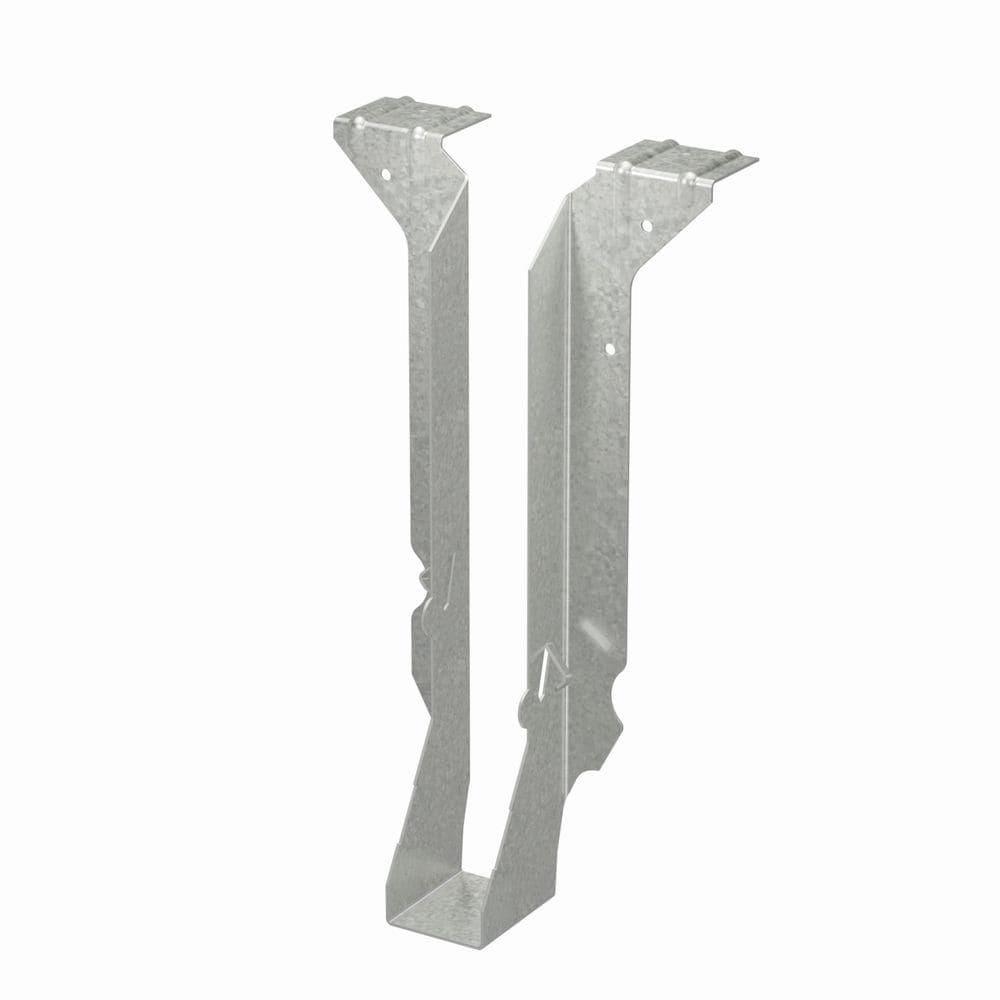

JBA Galvanized Top-Flange Hanger for 2x12
Limited Warranty

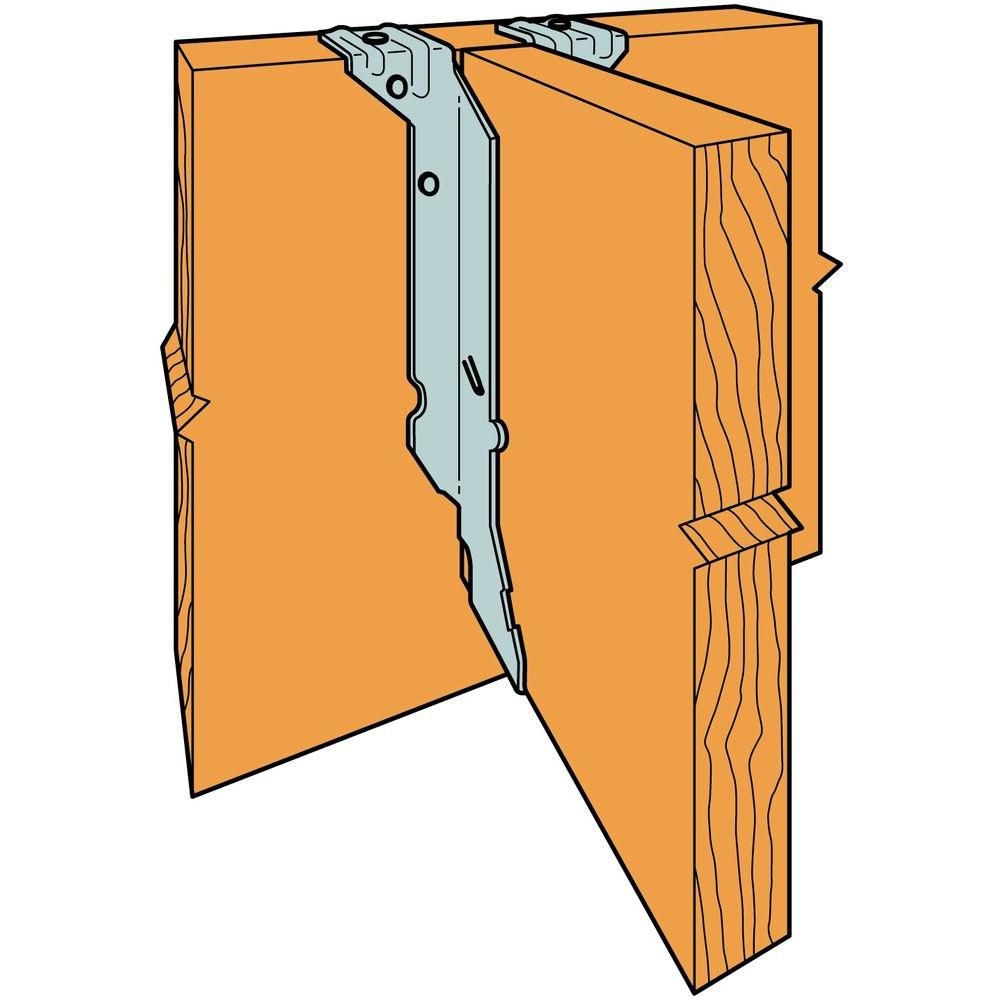

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The JB series is a cost-effective hanger featuring min/max joist nailing options. The new nail locations on the JBA enable effective use with nailers The unique two-level embossment provides added stiffness to the top flange Nominal joist size: 2x12 Made from 18-gauge steel Galvanized (G90) for extra corrosion resistance Install with 10d, 16d, or 10d x 1-1/2 in. nails
JBA Galvanized Top-Flange Hanger for 2x12
Sale price$11.74
Dimensions
Assembled Depth (in inches)
2.31
Assembled Height (in inches)
11.28
Assembled Weight (in lbs)
0.75
Assembled Width (in inches)
5.91
Packaged Depth (in inches)
2.31
Packaged Height (in inches)
11.28
Packaged Weight (In lbs)
0.75
Packaged Width (in inches)
5.91
Details
Colour Family
Silver
Country of Origin
US-United States
Field Adjustable
No
Hanger Flange Type
Flange
Length (in.)
2
Material
Steel
Material Application
Wood
