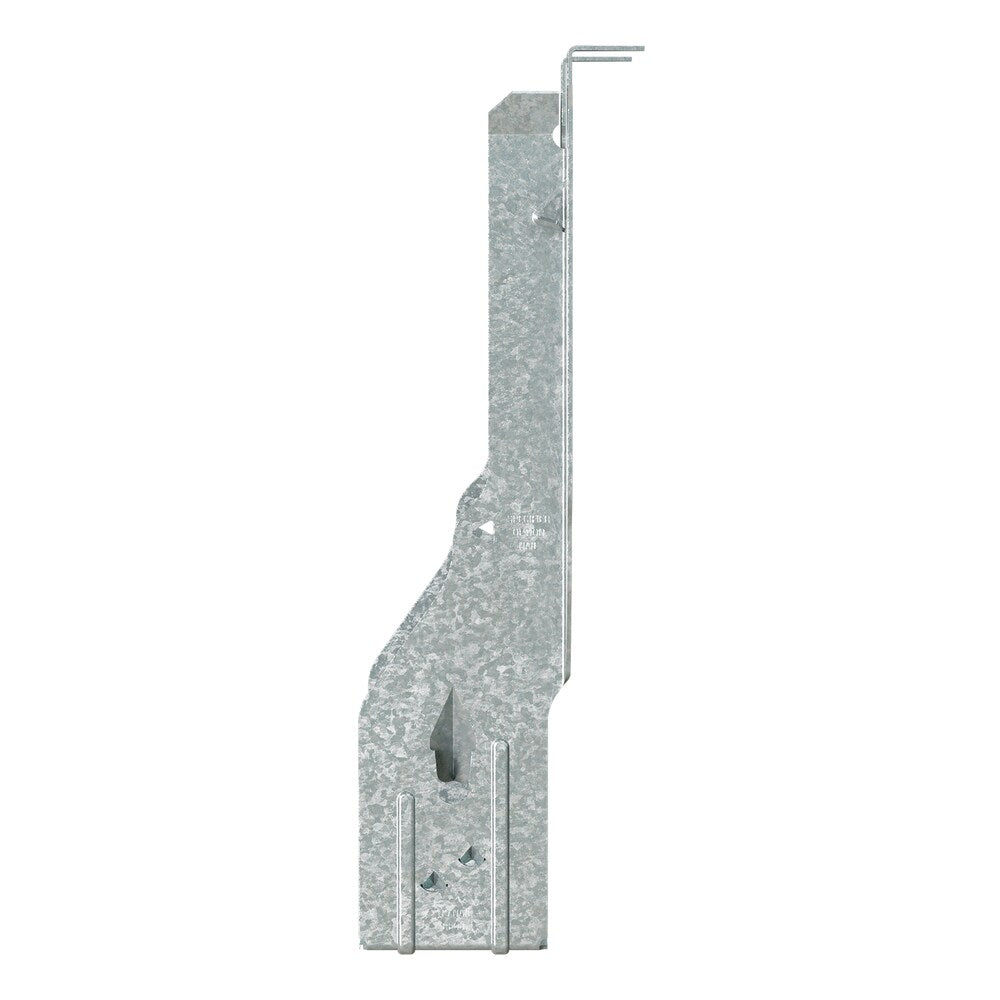

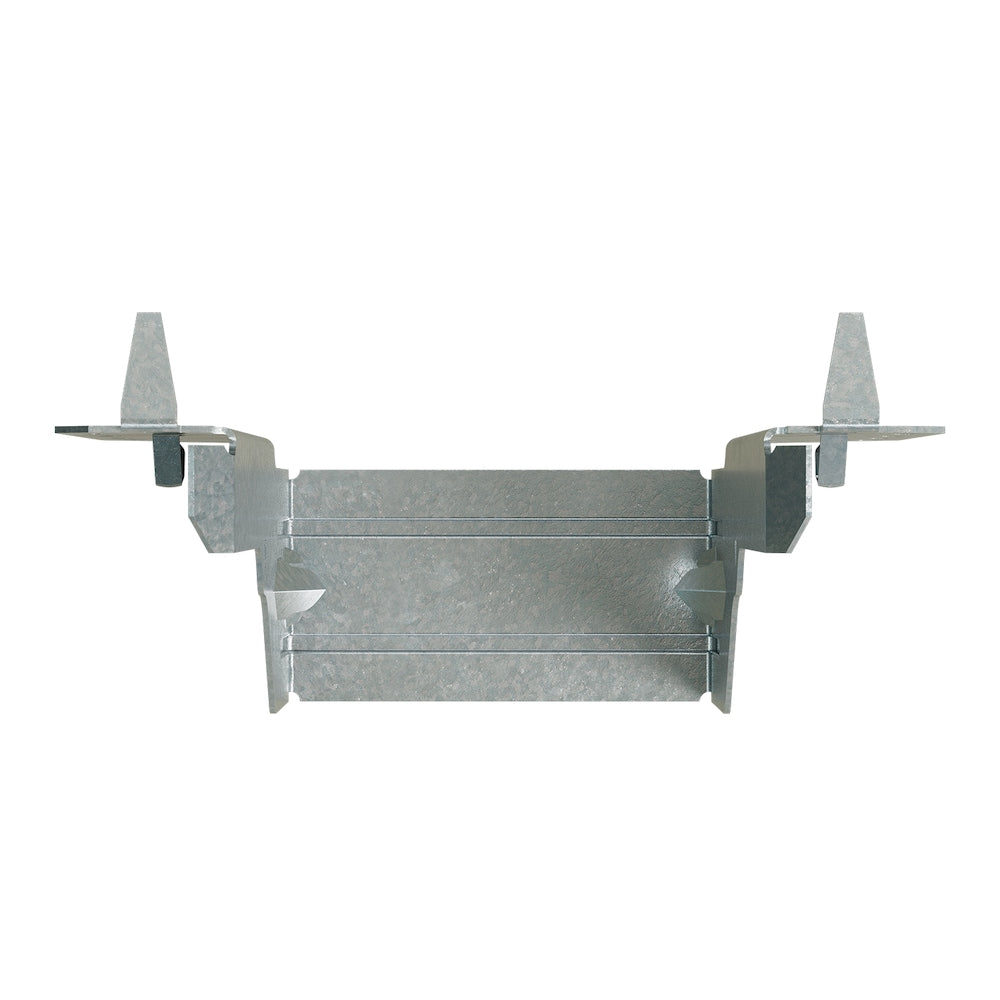

IUS Galvanized Face-Mount Joist Hanger for 3-1/2-in x 9-1/2-in Engineered Wood

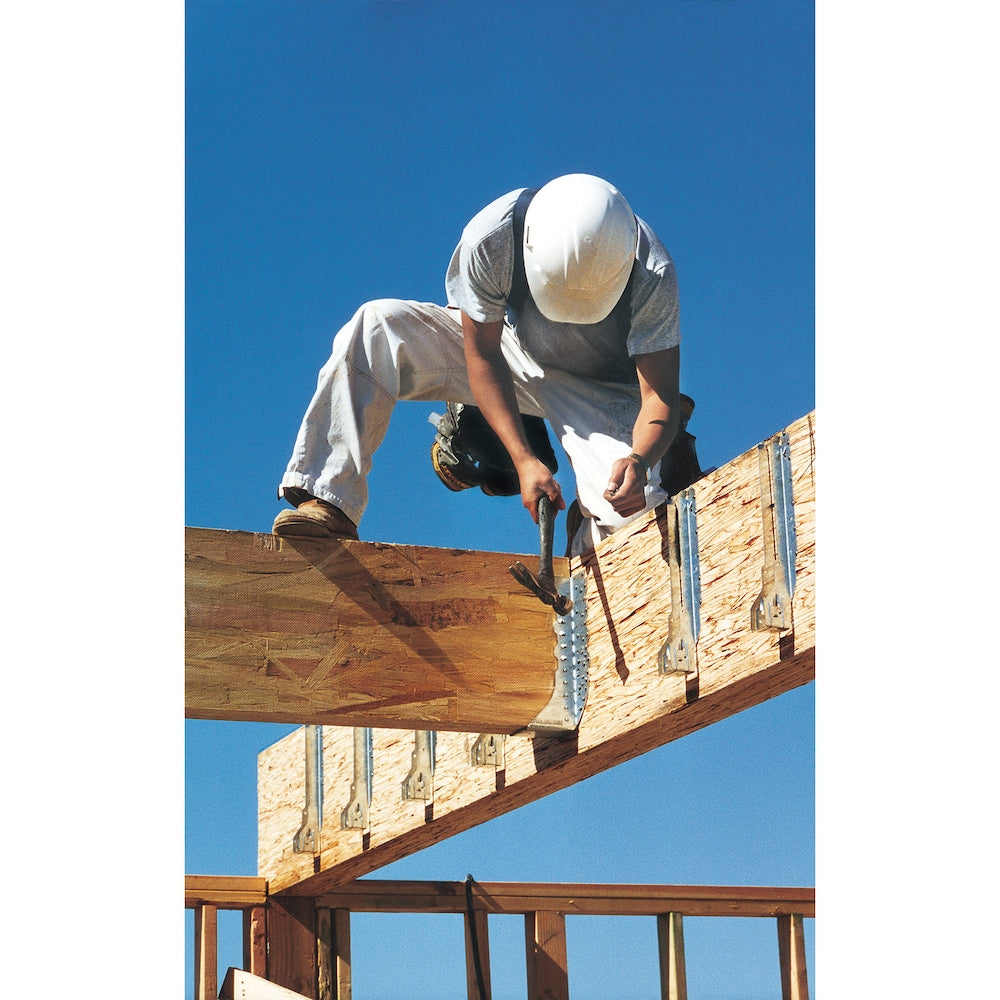

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The IUS series is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger and is fully compatible with shallow-flange I-joists. Installation is fast with the Strong-Grip seat, easy-to-reach face nails and self-jigging locator tabs Fasten hanger to header; position I-joist into hanger and snap into place Seat width: 3-5/8-in Height: 9-1/2-in Made from 18-gauge steel Galvanized (G90) for extra corrosion resistance
