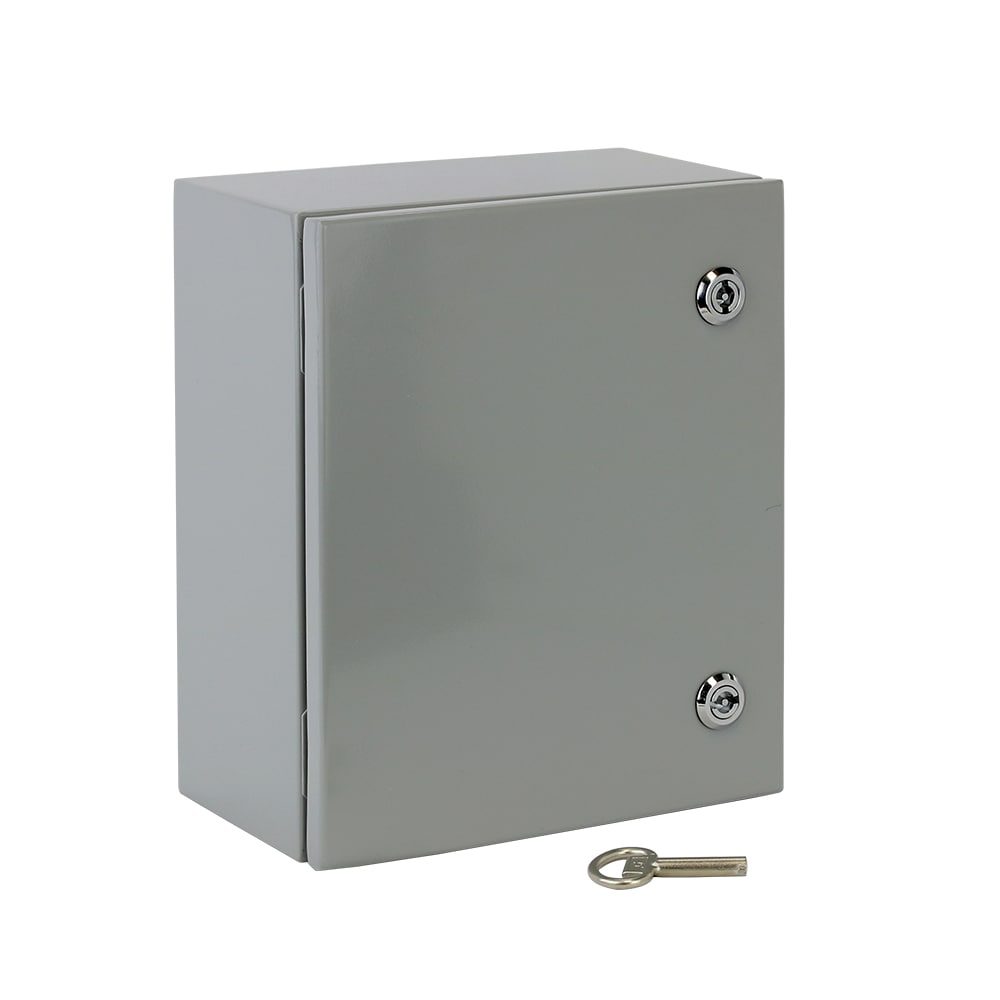

Outdoor Snow Melting Junction Box 11.9 in. x 9.8 in. x 5.91 in., Steel, Wall-Mounted
2 years
This large outdoor junction box can be used in combination with a WarmlyYours snow melting system. This device serves as an intermediary if the cold leads from your snow melting heating elements are too short to reach your relay panel. This junction box can accommodate up to 8 cold leads. It features wall-mounted installation with a NEMA 4X rating to ensure proper protection from the elements. The dimensions for this junction box are 11.9 x 9.8 x 5.91. This junction box can accommodate up to 8 cold leads Wall-mounted installation with a NEMA 4X rating Dimensions: 11.9 H x 9.8W x 5.91D
Dimensions
Assembled Depth (in inches)
9.8
Assembled Height (in inches)
11.9
Assembled Weight (in lbs)
12
Assembled Width (in inches)
5.91
Packaged Depth (in inches)
5.91
Packaged Height (in inches)
11.9
Packaged Weight (In lbs)
13
Packaged Width (in inches)
9.8
Details
Box Features
Paintable, Weatherproof, Deep
Box Type
Enclosure
Capacity (cu in.)
100
Certifications and Listings
CSA Certified
Colour Family
Grey
Country of Origin
US-United States
Indoor/Outdoor
Indoor/Outdoor
Material
Other
Number of Gangs
1-Gang
Number of Knockouts/Pryouts
0
Package Quantity
100
